Morphologic MRI may not detect subtle and slow changes in tissue that may occur with degeneration, remodeling or healing.
![](/images/Image/Image_54eb5552e2a75.jpg)
![](/images/Physician/plus_top.jpg)
Clinical Challenge
Technical Approach
Use novel sequences such as Ultrashort Time-to-Echo (UTE) MRI and high spatial resolution afforded by latest , and the newest morphologic techniques tailored for small tissues.
![](/images/PhysicianPartContent/PhysicianPartContent_54e64b0875817.png)

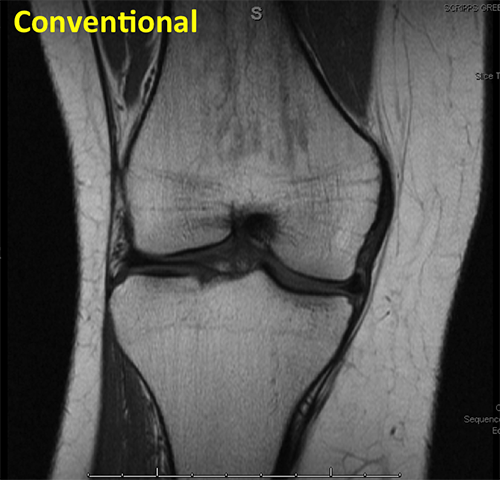

Knee Conventional
This conventional MRI of a knee shows articular cartilage and menisci with medium to low signal intensity.
![](/images/PhysicianPartContent/PhysicianPartContent_54e64b2593ce5.png)

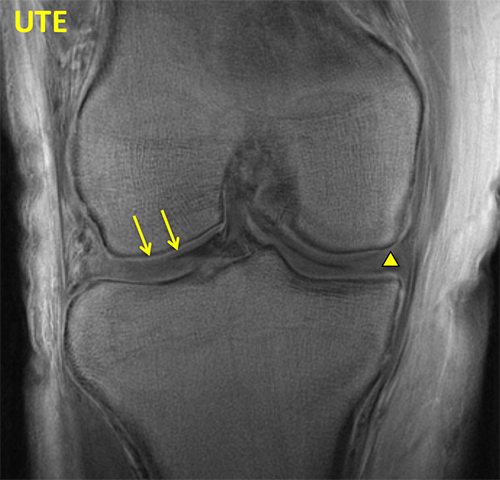

Knee UTE
UTE MRI reveals deep and calcified layers of articular cartilage (arrows) and menisci (triangle) with high signal intensity.
![](/images/Physician/plus_bg.jpg)
![](/images/PhysicianPartContent/PhysicianPartContent_54e64b5b69676.png)

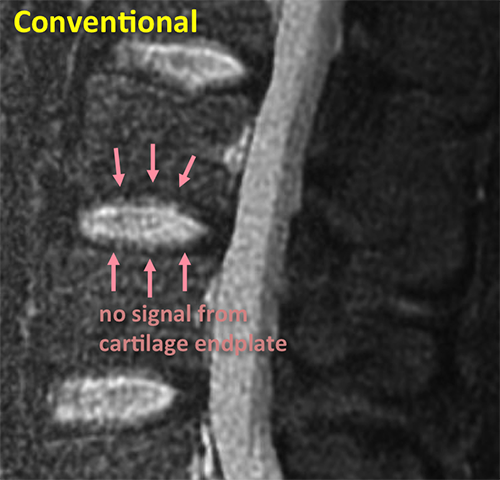

Spine Conventional
This conventional MRI of a spine shows cartilage endplates with low signal intensity, making it difficult to evaluate them.
![](/images/PhysicianPartContent/PhysicianPartContent_54e64b7600193.png)

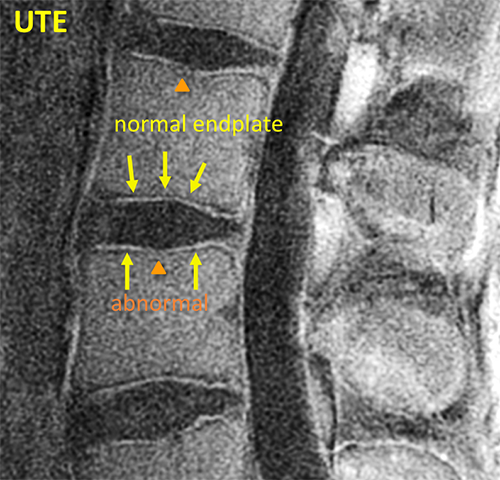

Spine UTE
UTE MRI reveals the structure of cartilage endplates with high contrast. Both normal and abnormal structures could be discerned here.
![](/images/Physician/plus_bg.jpg)
![](/images/PhysicianPartContent/PhysicianPartContent_54e64bc106a54.png)
Wrist Conventional
Conventional coronal fluid sensitive sequence of the wrist shows intermediate signal of articular cartilage, and low signal in the triangular fibrocartilage (TFC).
![](/images/PhysicianPartContent/PhysicianPartContent_54e64bd18a9d4.png)
Wrist UTE
UTE sequence of the wrist shows bright signal in the deep and calcified layer of cartilage (arrow) and in the triangular fibrocartilage (arrowhead) (TFC).
![](/images/Physician/plus_bg.jpg)
![](/images/PhysicianPartContent/PhysicianPartContent_54e64bf74b47d.png)

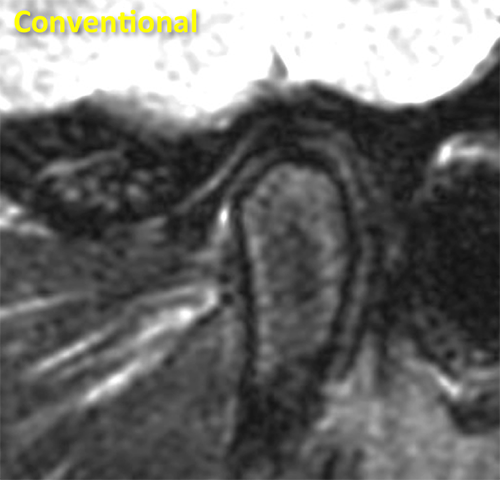

TMJ Conventional
Conventional sagittal fluid sensitive sequence of the TMJ shows the low signal intensity disc and the mandibular condyle.
![](/images/PhysicianPartContent/PhysicianPartContent_54e64c0e7b004.png)

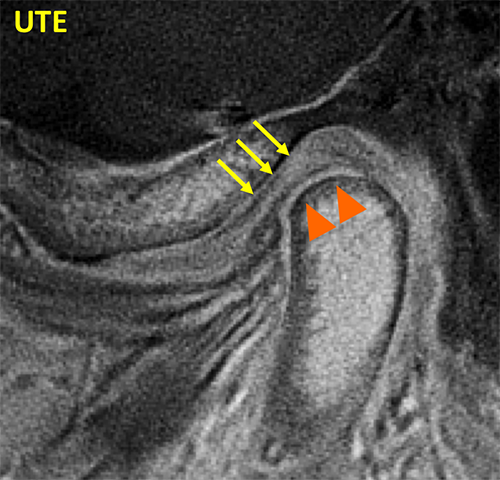

TMJ UTE
UTE sequence of the TMJ shows bright signal in the disc (arrows) and in the fibrocartilage covering the mandibular condyle (arrowhead).
![](/images/Physician/plus_bg.jpg)
![](/images/PhysicianPartContent/PhysicianPartContent_54e64c344db6d.png)

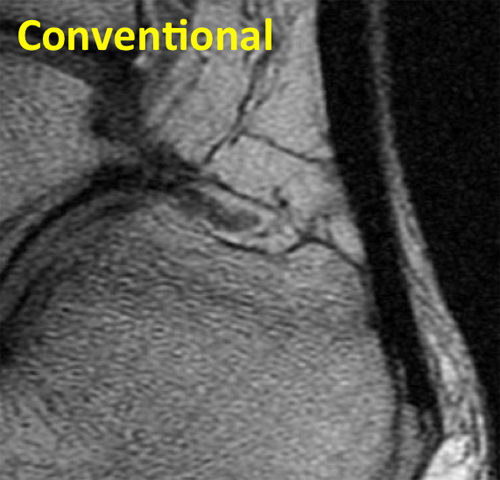

Tendon Conventional
Conventional sagittal MR image of the ankle shows the low signal intensity Achilles tendon.
![](/images/PhysicianPartContent/PhysicianPartContent_54e64c4cf30fc.png)

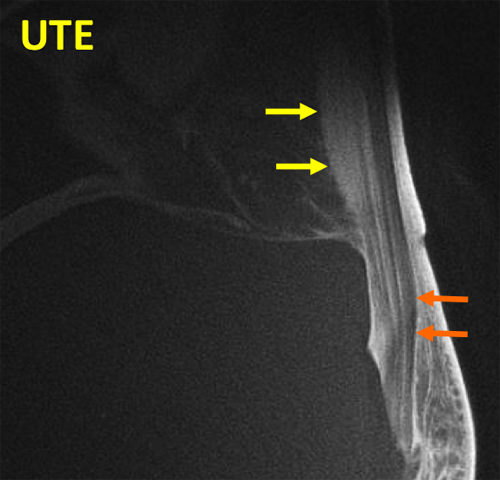

Tendon UTE
UTE sequence of the ankle shows normal fasciculation (white arrow) in the tendon and a region of tendinosis (orange arrow) that could not be seen on the standard MRI.
